Disconnect Alarm Remote GSM RTU Controller Remain Down Status Double Watchdog

gsm remote terminal unit, gsm rtu controller

System Feature

• Industrial NXP 32-bit ARM MCU
• Double watchdog to ensure stability
• With signal filtering mechanisms
• Support automatic network reconnection and data re-send
• Synchronize clock with multiple way, Sms, NTP, CwtIO Server
• Configurable action schedule(second, minute, day, week, month)
• Event-based linkage programming, e.g. alarm linkage output
• Provide console utility for visual programming over 100 parameters
• Optional inside lithium battery for power lost alarm and keep 8-20 hours working

DI feature

• Trigger dry contact(NO or NC)

DO(T) feature

• Relay drivable output(drive voltage=power supply voltage, Drive current≤500mA)
• on/off/pulse DO by remote control or local event
• Status memory function for power lost

DO(K) feature

• Relay output(NO, contact load: 2A / 125VAC,220VDC)
• on/off/pulse DO by remote control or local event
• Remain down status when power lost

AI feature

• 4-20mA (option: 0-5V) in, Sampling frequency: 33Hz, 10-bit precision)
• Convert signal to actual measure value,support adjustment
• Support offset and gain, alarm parameters, upload data setting
• Detect connect or disconnect to alarm

SMS feature

• Can add 10 administrator numbers for alarm and remote control
• Send sms alarm when input is triggered or reach alarm level
• All alarm and recover sms text can be edited
• Remote get device status or value by sending sms command
• Control output via sms command
• Configurable schedule for sms report IO channel's status or value
• Remote update parameters by sms
• Forward simcard overdue sms to admin
• Sms alar for power lost and recover

Wireless network communication

• Option network: cellular(2g/3g/4g) or Wi-Fi
• Communicate with up to 4 servers(IP or domain) by TCP/IP
• Support post or respond mode for data communication
• Communicate with server by optional Cwt_IO, Modbus TCP, http post protocol
• Support two-way data transparent transmission with RS485 or RS232

3g sms controller

gsm remote terminal unit

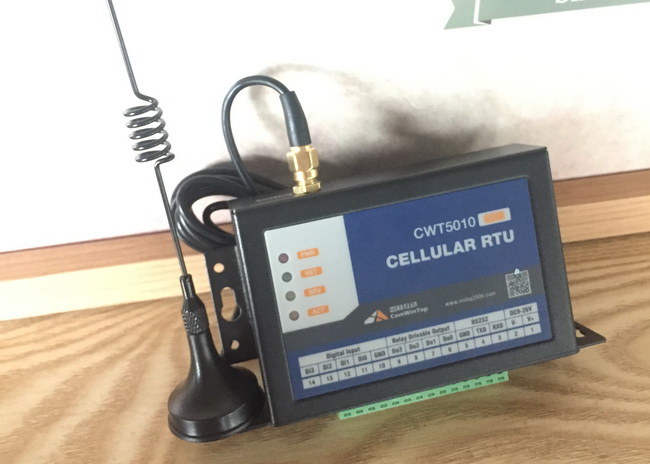

Disconnect Alarm Remote GSM RTU Controller Remain Down Status Double Watchdog Images
